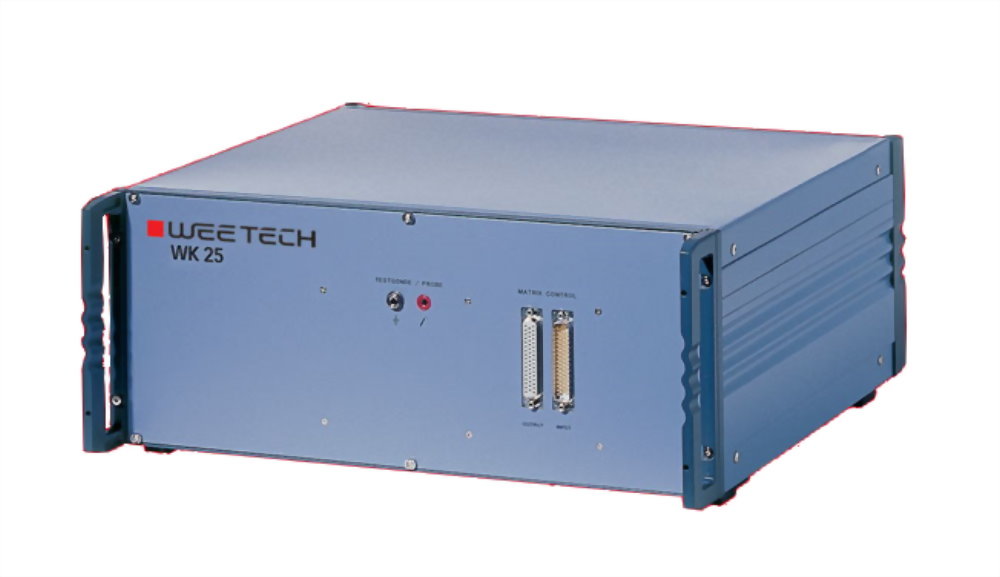

The premier choice for versatile interconnection test of electrical appliances, circuit boards, backplanes and wire harnesses. This easy-to-use system offers highly advanced test capabilities, user-friendly software, and extensive functions such as the Module Test Manager for efficient production control.
Test & Measurement Performance
Maximum Voltage of 10 VDC
Constant Current of 10 µA, 100 µA, 1 mA, or 5 mA
Continuity/Insulation Thresholds from 10 Ohms to 500 kOhms (± 5% ± 5 Ohms)
Resistor Test from 10 Ohms to 500 kOhms (± 5% ± 5 Ohms)
Capacitor Test from 10 nF to 10,000 µF (Up to 470 µF ± 10% ± 1 nF; Up to
10,000 µF ± 20%)
Diode Test for Open, Short and Reversed Insertion Polarity Test of Electrolytic Capacitors
Switching Matrix
Maximum of 32,768 Test Points via 256 x 128-Test Point Cards
CMOS Analog Switching
Functional Test (With Optional FT Box)
Test of Keys and Switches, and Powered Devices such as Horns, Signals, Brake Lights, etc.
Capable of Switching an External Source up to 24 VDC
LED Drivers
128 LED Drivers Per Card
Activates LEDs on an Assembly Board, Simultaneously with Associated Test Points
Aids in Visual Wiring Assembly and Fault Location
Hardware
PCI Interface Card for Installing into a PC (Includes Interface Cable)
Expandable to 2,048 Test Points in Main Chassis and 32,768 with Expansions
Optional Remote Control Interface for Driving Peripheral Devices (Fixtures,
Feeders, etc.)
Powered by PC (No External Power Required)
Dimensions & Weight
19-inch Rack-Mountable or Bench Top Enclosure
17.6 x 22.4 x 7.0 inches (W x D x H)
14.3 lbs without Test Point Cards
Easy Test Point Expansion & Distribution
Very High Voltage (5,000 VDC / 3,600 VAC)
RLC Component Measurement
High Measurement Accuracy
Extremely Fast Test Speeds
Functional Testing of Control Assemblies
Automated Fiber Optics Testing
Reduction of Adaptation Cable Length
MIL 810 & MIL 1553 Certification
User-Friendly Software
