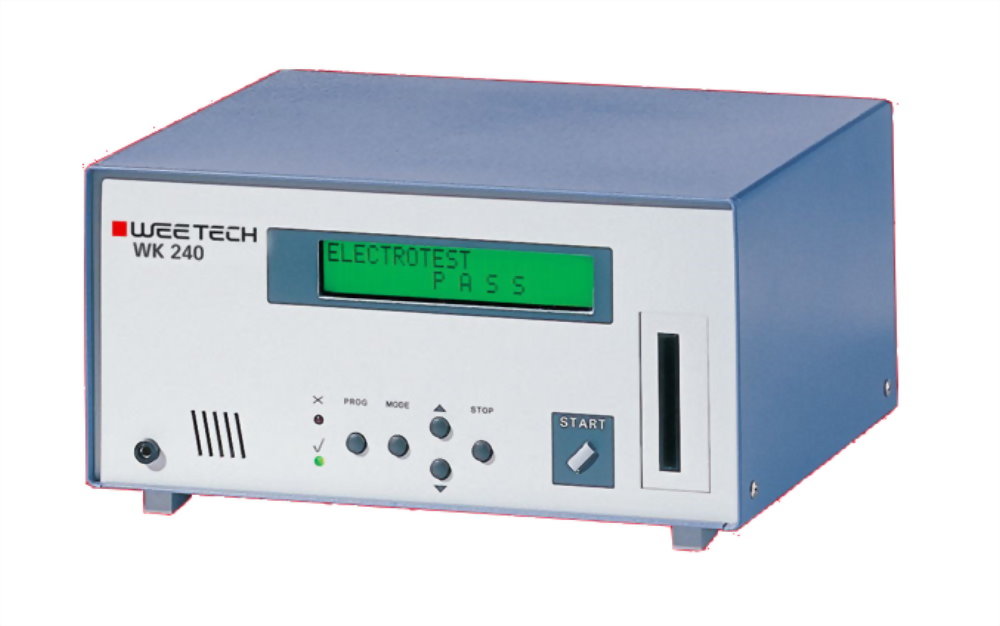

The premier choice for in-process and final test of computer cables as well as cabling of electrical appliances and wire harnesses. This easy-to-use system offers highly advanced capabilities and can be integrated into a PC network for central program management and storage of statistical test data.
Test & Measurement Performance
Maximum Voltage of 12.5 VDC
Constant Current of 10 µA, 100 µA, 1 mA, or 5 mA
Continuity/Insulation Thresholds from 10 Ohms to 100 kOhms
Resistor Test from 1 Ohm to 1 MOhm (± 5% ± 5 Ohms)
Capacitor Test from 50 nF to 1,000 µF (± 10% ± 20 nF)
Diode Test for Open, Short and Reversed Insertion
Switching Matrix
Maximum of 1,024 Test Points via 8 x 128-Test Point Cards
CMOS Analog Switching
Functional Test (With Optional FT Box)
Test of Keys and Switches, and Powered Devices such as Horns, Signals, Brake Lights, etc.
Capable of Switching an External Source up to 24 VDC
LED Drivers
128 LED Drivers Per Card
Activates LEDs on an Assembly Board, Simultaneously with Associated Test Points
Aids in Visual Wiring Assembly and Fault Location
Hardware
Stand-Alone Unit (No PC Required) via a Micro-Controller at 20 MHz
512 KB Static RAM Battery-Backed for 5 Years Minimum
Optional Ethernet Interface for TCP/IP Transfer with Defined IP Address
Two Parallel and Three Serial Interfaces (For Printer, Barcode Reader, etc.)
Interface for Remote Operation and Driving Peripheral Devices (Fixtures,
Feeders, etc.)
Optional PC Card for Additional Test Program Storage
Dimensions & Weight
Portable Enclosure
11.8 x 9.1 x 5.9 inches (W x D x H)
7.7 lbs without Test Point Cards
Easy Test Point Expansion & Distribution
Very High Voltage (5,000 VDC / 3,600 VAC)
RLC Component Measurement
High Measurement Accuracy
Extremely Fast Test Speeds
Functional Testing of Control Assemblies
Automated Fiber Optics Testing
Reduction of Adaptation Cable Length
MIL 810 & MIL 1553 Certification
User-Friendly Software
