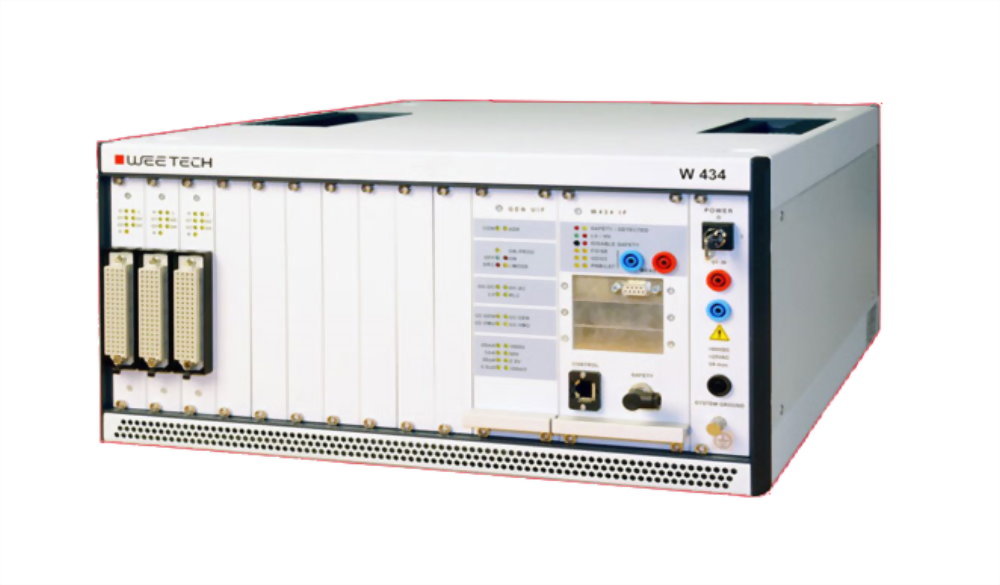

The portable W 434 can be adapted to applications in the automotive, aerospace, electronics and medical industry by different combinations of low voltage and/or high voltage generators up to 1,500 Vdc/1,060 Vac and a RLC measurement bridge. In case of changing test specification only a software update is needed.
Test & Measurement Performance
Continuity Test
Lower bound 1 Ohm ± (2% + 0.5 Ohms)
Four Terminal Measurement down to 10 mOhms ± (2% + 2 mOhms)
Programmable current sources up to 1 A/max 30 W
Insulation, Hi-Pot, DC and AC Arc-Detection Test With HV DC/AC
Upper limit typically 10 GOhms, up to 500 MOhms ± 2%
1,500 Vdc/1,060 Vac programmable
ARC detection with unique voltage and slew rate recognition
Insulation Test With LV
Up to 100 MOhms ± 10%, up to 50 MOhms ± 5%
48 Vdc programmable
Programmable current sources up to 1 A/max 30 W
Component Test
Resistors
1 Ohm to 10 MOhm, accuracy ± (1% + 0.5 Ohms)
10 MOhm to 500 MOhm, accuracy ± 2%
10 mOhms to 100 MOhms, accuracy ± (2% + 2 mOhms) (Four Terminal Measurement)
Capacitances
1 µF to 10 mF, accuracy ± (5% + 100 nF)
Diodes and Zener diodes Test of forward, reverse and Zener voltage
Transistors
Twisted-Pair and Shield Test from 100 pF to 1 µF ± (5% + 5 pF)
Checks pair inversion and shield integrity
Attenuation and Polarity Test
Frequency 10 - 1,000 kHz
Waveform Sine
Attenuation measurement 0 - 40 dB
Accuracy in the range of 10 to 200 kHz ± 0.5 dB in the range of 200 to 1,000 kHz ± 1 dB
Transmission level 500 mVp at 50 Ohms/77 Ohms
3.97 dBm at 50 Ohms
2.10 dBm at 77 Ohms
Polarity check in phase/dephased
Time/Pulse Measurement
Minimum resolution 500 ns
Maximum resolution 6.5 s
Maximum 8,191 samples
Functional Test
Supply of the UUT with programmable voltages up to 25 Vac/60 Vdc
Emulation of the switching processes
Voltage measurement 0 to (±) 500 V, frequency DC to 1 kHz
Reproduction of the functional environment, e. g. by electronic loads, frequencies etc.
Functional test of push buttons and switches
Import of characteristic curves of external devices and display/interpretation by software
RLC Meter
Fast, Accurate and Safe Component Network Measurement
Automatic Determination of Serial or Parallel RL / RC Networks
0 - 5 Vpp, DC to 100 kHz
Twisted Pair / Shielded Cable Test from 10 pF to 1 µF (±1% ± 2 pF)
Capacitor Test from 1 µF to 10,000 µF (± 2%)
Inductance Test from 1 µH to 1 H (± 2%)
Additional Measurement Capabilities Include:
|Z| - Impedance
|Y| - Admittance
θ - Phase Angle
R - Resistance (Serial or Parallel)
C - Capacitance (Serial or Parallel)
L - Inductance (Serial or Parallel)
D - Dissipation Factor
Q - Quality Factor
Hardware
Ethernet interface for control computer
Remote Control interface (optional) to trigger external devices, e. g. feeders and fixtures
Software-controlled integration of external devices via IEEE 488/GPIB, RS 232, Ethernet, CAN-Bus, K-Line
Integration into customer specific ERP-Systems
Remote control with handheld-PC (Wireless LAN) or via TCP/IP
Integrated, fixed voltage sources up to 3 A/up to 24 Vdc or external supplies
MIL 1553 Test (Optional)
Integrates a Frequency Generator into the W 454 Test Point Matrix
Integrated Frequency Counter for Measurement of Attenuation, Polarity and Phase Alignment
Each Stub acts as Sender/Receiver, allowing Bidirectional Measurements without Additional Wiring
Expected Attenuation is 12.1 dB ± 1 dB (20 x log [U2 / U1])
Dimensions & Weight
Portable 19 inch enclosure
W 434-2: 5 U with max. 640 test points, W x D x H (mm): 450 x 550 x 235
W 434-3: 9 U with max. 1,664 test points, W x D x H (mm): 450 x 550 x 410
ETE 434: 9 U with max. 1,664 test points, W x D x H (mm): 450 x 550 x 410
The number of test points of model 3 can be expanded up to 6,656 with max 3 pcs. expansion unit ETE 434
