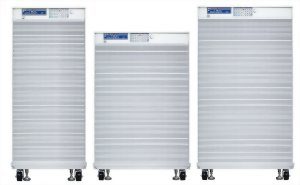

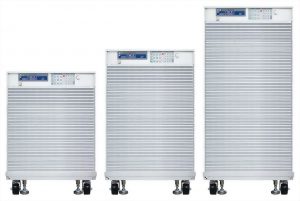

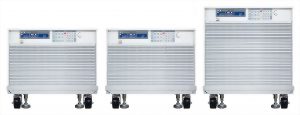

5VP 系列包括高功率負載櫃系統為 60V、 600V 或 1000V 輸入範圍的支援。
所有負載都共用一個共同的和直觀的使用者介面。5VP 系列是高效綜合的直流負載系統，
從單一的使用者控制台或遠端控制介面操作。
有 24 個不同 5VP 系列型號從 5kW 60kW 到。為更高的功率要求，可以輕鬆地平行 5VP 模型。
5VP 系列直流負載有關的問題，請與我們聯繫。
自我調整功率 5VP 系列荷載是為廣泛的行業非常高功率直流測試及產品開發應用。
5VP 系列機型支援電壓 60V，600V 或 1000V 和非常適合用於測試大型電池系統、
高功率 ac/DC 轉換器和太陽能和風能電力應用程式中發現的能源存儲系統。
他們靈活的 V-運行特性曲線跨度範圍的電壓和電流組合在高功率水準。
所有 5VP 系列機型都具有更高的精確度和決議以較低的電壓和電流的水準，進一步提高其效能低範圍模式。
5VP 系列套一共有 24 個不同型號提供廣泛變化的可能的電壓、 電流和功率組合。
5VP Series Models – 60 Vdc
|
Model
|
5VP05-100
|
5VP10-100
|
5VP15-100
|
5VP20-100
|
|
OPERATING RANGES
|
|
Power Ranges
|
0-0.5 kW
|
0-5 kW
|
0-1.0 kW
|
0-10 kW
|
0-1.5 kW
|
0-15 kW
|
0-2.0 kW
|
0-20 kW
|
|
Current Ranges
|
0 – 100 A
|
0 – 1000 A
|
0 – 100 A
|
0 – 1000 A
|
0 – 100 A
|
0 – 1000 A
|
0 – 100 A
|
0 – 1000 A
|
|
Voltage Range
|
0 – 60 V
|
|
Minimum Voltage
|
0.1 V @ 100 A
|
0.7 V @ 1000 A
|
0.1 V @ 100 A
|
0.7 V @ 1000 A
|
0.1 V @ 100 A
|
0.7 V @ 1000 A
|
0.1 V @ 100 A
|
0.7 V @ 1000 A
|
|
OPERATING MODES
|
Constant Current (CC), Constant Resistance (CR), Constant Voltage (CV), Constant Power (CP), Constant Current + Constant Voltage (CC+CV) and Constant Power + Constant Voltage (CV)
|
|
PROTECTION
|
Over Power (OP), Over Current (OC), Over Voltage (OV), Over Temperature (OT)
|
DYNAMIC OPERATION
|
|
T high & T low
|
0.150-9.999/…/9999ms
|
0.050-9.999 / 99.99 / 999.9 / 9999ms (20 kHz)
|
|
Slew Rate
|
24mA-1.5A/μs
|
240mA-15A/μs
|
66.4mA-4.15A/μs
|
664mA-41.5A/μs
|
66.4mA-4.15A/μs
|
664mA-41.5A/μs
|
66.4mA-4.15A/μs
|
664mA-41.5A/μs
|
|
METERING
|
|
Voltage Range
|
0 – 6 V
|
6 – 60 V
|
0 – 6 V
|
6 – 60 V
|
0 – 6 V
|
6 – 60 V
|
0 – 6 V
|
6 – 60 V
|
|
Current Range
|
0 – 100 A
|
0 – 1000 A
|
0 – 100 A
|
0 – 1000 A
|
0 – 100 A
|
0 – 1000 A
|
0 – 100 A
|
0 – 1000 A
|
|
Power Range
|
0 – 500 W
|
0 – 5000 W
|
0 – 1000 W
|
0.600 – 10 kW
|
0 – 1500 W
|
600 – 15000 W
|
0 – 2000 W
|
0.6 – 20 kW
|
|
SHORT CIRCUIT CURRENT
|
1000 A
|
|
AC INPUT & PHYSICAL SPECIFICATIONS
|
|
AC Input/Cooling
|
115/230 Vac ±10%, 50/60Hz / Variable Speed Fan Cooled
|
|
Dimensions (HxWxD)
|
577 x 647 x 766 mm
22.7″ x 25.5″ x 30.2″
|
736 x 647 x 766 mm
29″ x 25.5″ x 30.2″
|
889 x 647 x 766mm
29″ x 25.5″ x 35″
|
|
Weight (Net)
|
100kg / 220.5 lbs
|
130kg / 286.6 lbs
|
170kg / 374.8 lbs
|
220kg / 485.0 lbs
|
|
Model
|
5VP25-100
|
5VP30-100
|
5VP05-16
|
5VP10-32
|
|
OPERATING RANGES
|
|
Power Ranges
|
0-2.5 kW
|
0-25 kW
|
0-3.0 kW
|
0-30 kW
|
0-0.5 kW
|
0-5 kW
|
0-1.0 kW
|
0-10 kW
|
|
Current Ranges
|
0 – 100 A
|
0 – 1000 A
|
0 – 100 A
|
0 – 1000 A
|
0 – 16 A
|
0 – 160 A
|
0 – 32 A
|
0 – 320 A
|
|
Voltage Range
|
0 – 60 V
|
|
Minimum Voltage
|
0.1 V @ 100 A
|
0.7 V @ 1000 A
|
0.1 V @ 100 A
|
0.7 V @ 1000 A
|
20 V @ 160 A
|
20 V @ 320 A
|
|
OPERATING MODES
|
Constant Current (CC), Constant Resistance (CR), Constant Voltage (CV), Constant Power (CP), Constant Current + Constant Voltage (CC+CV) and Constant Power + Constant Voltage (CV)
|
|
PROTECTION
|
Over Power (OP), Over Current (OC), Over Voltage (OV), Over Temperature (OT)
|
DYNAMIC OPERATION
|
|
T high & T low
|
0.050-9.999 / 99.99 / 999.9 / 9999ms (20 kHz)
|
|
Slew Rate
|
66.4mA-4.15A/μs
|
664mA-41.5A/μs
|
66.4mA-4.15A/μs
|
664mA-41.5A/μs
|
12.8mA-800mA/μs
|
128mA-8A/μs
|
25.6mA-1.6A/μs
|
256mA-16A/μs
|
|
METERING
|
|
Voltage Range
|
0 – 6 V
|
6 – 60 V
|
0 – 6 V
|
6 – 60 V
|
0 – 6 V
|
60 – 600 V
|
0 – 60 V
|
60 – 600 V
|
|
Current Range
|
0 – 100 A
|
100 – 1000 A
|
0 – 100 A
|
100 – 1000 A
|
0 – 16 A
|
16 – 160 A
|
0 – 32 A
|
32 – 320 A
|
|
Power Range
|
0 – 2500 W
|
0 – 2500 W
|
0 – 3000 W
|
0 – 30000 W
|
0 – 500 W
|
0 – 5000 W
|
0 – 1000 W
|
0 – 10000 W
|
|
SHORT CIRCUIT CURRENT
|
1000 A
|
160 A
|
320 A
|
|
|
AC INPUT & PHYSICAL SPECIFICATIONS
|
|
AC Input/Cooling
|
115/230 Vac ±10%, 50/60Hz / Variable Speed Fan Cooled
|
|
Dimensions (HxWxD)
|
1048 x 647 x 766 mm
22.7″ x 25.5″ x 30.2″
|
1201 x 647 x 766 mm
47.3″ x 25.5″ x 30.2″
|
577 x 647 x 766 mm
29″ x 25.5″ x 30.2″
|
577 x 647 x 766 mm
29″ x 25.5″ x 30.2″
|
|
Weight (Net)
|
280kg / 617.3 lbs
|
340kg / 749.6 lbs
|
100kg / 220.5 lbs
|
130kg / 286.6 lbs
|
5VP Series Models – 600 Vdc
|
Model
|
5VP15-48
|
5VP20-64
|
5VP25-80
|
5VP30-96
|
|
OPERATING RANGES
|
|
Power Ranges
|
0-1.5 kW
|
0-15 kW
|
0-2.0 kW
|
0-20 kW
|
0-2.5 kW
|
0-25 kW
|
0-3.0 kW
|
0-30 kW
|
|
Current Ranges
|
0 – 48 A
|
0 – 480 A
|
0 – 64 A
|
0 – 640 A
|
0 – 80 A
|
0 – 800 A
|
0 – 96 A
|
0 – 960 A
|
|
Voltage Range
|
0 – 600 V
|
|
Minimum Voltage
|
20 V @ 480 A
|
20 V @ 640 A
|
20 V @ 800 A
|
20 V @ 960 A
|
|
OPERATING MODES
|
Constant Current (CC), Constant Resistance (CR), Constant Voltage (CV), Constant Power (CP), Constant Current + Constant Voltage (CC+CV) and Constant Power + Constant Voltage (CV)
|
|
PROTECTION
|
Over Power (OP), Over Current (OC), Over Voltage (OV), Over Temperature (OT)
|
DYNAMIC OPERATION
|
|
T high & T low
|
0.050-9.999 / 99.99 / 999.9 / 9999ms (20 kHz)
|
|
Slew Rate
|
38.4mA-2.4A/μs
|
384mA-24A/μs
|
51.2mA-3.2A/μs
|
512mA-32A/μs
|
64mA-4A/μs
|
640mA-40A/μs
|
76.8mA-4.8A/μs
|
768mA-48A/μs
|
|
METERING
|
|
Voltage Range
|
0 – 60 V
|
60 – 600 V
|
0 – 60 V
|
60 – 600 V
|
0 – 60 V
|
60 – 600 V
|
0 – 60 V
|
60 – 600 V
|
|
Current Range
|
0 – 48 A
|
48 – 480 A
|
0 – 64 A
|
64 – 640 A
|
0 – 80 A
|
80 – 800 A
|
0 – 96 A
|
96 – 960 A
|
|
Power Range
|
0 – 1500 W
|
0 – 15000 W
|
0 – 2000 W
|
0 – 20000 W
|
0 – 2500 W
|
0 – 25000 W
|
0 – 3000 W
|
0 – 30000 W
|
|
SHORT CIRCUIT CURRENT
|
480 A
|
|
AC INPUT & PHYSICAL SPECIFICATIONS
|
|
AC Input/Cooling
|
115/230 Vac ±10%, 50/60Hz / Variable Speed Fan Cooled
|
|
Dimensions (HxWxD)
|
73 6 x 647 x 766mm
29″ x 25.5″ x 30.2″
|
889 x 647 x 766mm
5″ x 25.5″ x 30.2″
|
1048 x 647 x 766mm
41.3″ x 25.5″ x 30.2″
|
1201 x 647 x 766mm
47.3″ x 25.5″ x 30.2″
|
|
Weight (Net)
|
170kg / 374.8 lbs
|
220kg / 485.0 lbs
|
280kg / 617.3 lbs
|
340kg / 749.6 lbs
|
|
Model
|
5VP50-21
|
5VP60-24
|
5VP50-50
|
5VP60-60
|
|
OPERATING RANGES
|
|
Power Ranges
|
0-5.0 kW
|
0-50 kW
|
0-6.0 kW
|
0-60 kW
|
0-5.0 kW
|
0-50 kW
|
0-6.0 kW
|
0-60 kW
|
|
Current Ranges
|
0 – 21 A
|
0 – 210 A
|
0 – 24 A
|
0 – 240 A
|
0 – 52.5 A
|
0 – 500 A
|
0 – 60 A
|
0 – 600 A
|
|
Voltage Range
|
0 – 600 V
|
|
Minimum Voltage
|
20 V @ 210 A
|
20 V @ 240 A
|
20 V @ 500 A
|
20 V @ 600 A
|
|
OPERATING MODES
|
Constant Current (CC), Constant Resistance (CR), Constant Voltage (CV), Constant Power (CP), Constant Current + Constant Voltage (CC+CV) and Constant Power + Constant Voltage (CV)
|
|
PROTECTION
|
Over Power (OP), Over Current (OC), Over Voltage (OV), Over Temperature (OT)
|
DYNAMIC OPERATION
|
|
T high & T low
|
0.050-9.999 / 99.99 / 999.9 / 9999ms (20 kHz)
|
|
Slew Rate
|
16.8mA-1.05A/us
|
168mA-10.5A/us
|
19.2mA-1.2A/us
|
192mA-12A/us
|
42mA-2.625A/us
|
420mA-26.25A/us
|
48mA-3A/us
|
480mA-30A/us
|
|
METERING
|
|
Voltage Range
|
0 – 60 V
|
60 – 600 V
|
0 – 60 V
|
60 – 600 V
|
0 – 100 V
|
100 – 1000 V
|
0 – 100 V
|
100 – 1000 V
|
|
Current Range
|
0 – 21 A
|
21 – 210 A
|
0 – 24 A
|
24 – 240 A
|
0 – 52.5 A
|
52.5 – 500 A
|
0 – 60 A
|
60 – 600 A
|
|
Power Range
|
0 – 5 kW
|
0 – 50 kW
|
0 – 6 kW
|
0 – 60 kW
|
0 – 5 kW
|
0 – 50 kW
|
0 – 6 kW
|
0 – 60 kW
|
|
SHORT CIRCUIT CURRENT
|
210 A
|
240 A
|
500 A
|
600 A
|
|
AC INPUT & PHYSICAL SPECIFICATIONS
|
|
AC Input/Cooling
|
115/230 Vac ±10%, 50/60Hz / Variable Speed Fan Cooled
|
|
Dimensions (HxWxD)
|
1360 x 853 x 766 mm
53.6″ x 33.6″ x 30.2″
|
1513 x 853 x 766 mm
59.6″ x 33.6″ x 30.2″
|
1360 x 853 x 766 mm
53.6″ x 33.6″ x 30.2″
|
1513 x 853 x 766 mm
59.6″ x 33.6″ x 30.2″
|
|
Weight (Net)
|
510kg / 1124.4 lbs
|
630kg / 1388.9 lbs
|
510kg / 1124.4 lbs
|
630kg / 1388.9 lbs
|
5VP SERIES MODELS – 1000 VDC
|
Model
|
5VP05-05
|
5VP10-10
|
5VP15-15
|
5VP20-20
|
|
OPERATING RANGES
|
|
Power Ranges
|
0-0.5 kW
|
0-5 kW
|
0-1.0 kW
|
0-10 kW
|
0-1.5 kW
|
0-15 kW
|
0-2.0 kW
|
0-20 kW
|
|
Current Ranges
|
0 – 5 A
|
0 – 50 A
|
0 – 10 A
|
0 – 100 A
|
0 – 15 A
|
0 – 150 A
|
0 – 20 A
|
0 – 200 A
|
|
Voltage Range
|
0 – 1000 V
|
|
Minimum Voltage
|
20 V @ 50 A
|
20 V @ 100 A
|
20 V @ 150 A
|
20 V @ 200 A
|
|
OPERATING MODES
|
Constant Current (CC), Constant Resistance (CR), Constant Voltage (CV), Constant Power (CP), Constant Current + Constant Voltage (CC+CV) and Constant Power + Constant Voltage (CV)
|
|
PROTECTION
|
Over Power (OP), Over Current (OC), Over Voltage (OV), Over Temperature (OT)
|
DYNAMIC OPERATION
|
|
T high & T low
|
0.050-9.999 / 99.99 / 999.9 / 9999ms (20 kHz)
|
|
Slew Rate
|
0.004A-0.25A/μs
|
0.04A-2.5A/μs
|
0.008A-0.5A/μs
|
0.08A-5A/μs
|
0.012A-0.75A/μs
|
0.12A-7.5A/μs
|
0.016A-1A/μs
|
0.16A-10A/μs
|
|
METERING
|
|
Voltage Range
|
0 – 100 V
|
100 – 1000 V
|
0 – 100 V
|
100 – 1000 V
|
0 – 100 V
|
100 – 1000 V
|
0 – 100 V
|
100 – 1000 V
|
|
Current Range
|
0 – 5 A
|
5 – 50 A
|
0 – 10 A
|
10 – 100 A
|
0 – 15 A
|
15 – 150 A
|
0 – 20 A
|
20 – 200 A
|
|
Power Range
|
0 – 0.55 kW
|
0 – 5 kW
|
0 – 1.0 kW
|
0 – 10 kW
|
0 – 1.5 kW
|
0 – 15 kW
|
0 – 2.0 kW
|
0 – 20 kW
|
|
SHORT CIRCUIT CURRENT
|
50 A
|
100 A
|
150 A
|
200 A
|
|
AC INPUT & PHYSICAL SPECIFICATIONS
|
|
AC Input/Cooling
|
115/230 Vac ±10%, 50/60Hz / Variable Speed Fan Cooled
|
|
Dimensions (HxWxD)
|
577 x 647 x 766 mm
29″ x 25.5″ x 30.2″
|
736 x 647 x 766 mm
29″ x 25.5″ x 30.2″
|
736 x 647 x 766 mm
29″ x 25.5″ x 30.2″
|
889 x 647 x 766 mm
29″ x 25.5″ x 30.2″
|
|
Weight (Net)
|
100kg / 220.5 lbs
|
130kg / 286.6 lbs
|
170kg / 374.8 lbs
|
220kg / 485.0 lbs
|
|
Model
|
5VP25-25
|
5VP30-30
|
5VP35-35
|
5VP40-40
|
|
OPERATING RANGES
|
|
Power Ranges
|
0-2.5 kW
|
0-25 kW
|
0-3.0 kW
|
0-30 kW
|
0-3.5 kW
|
0-35 kW
|
0-4.0 kW
|
0-40 kW
|
|
Current Ranges
|
0 – 25 A
|
0 – 250 A
|
0 – 30 A
|
0 – 300 A
|
0 – 35 A
|
0 – 350 A
|
0 – 40 A
|
0 – 400 A
|
|
Voltage Range
|
0 – 1000 V
|
|
Minimum Voltage
|
20 V @ 250 A
|
20 V @ 300 A
|
20 V @ 350 A
|
20 V @ 400 A
|
|
OPERATING MODES
|
Constant Current (CC), Constant Resistance (CR), Constant Voltage (CV), Constant Power (CP), Constant Current + Constant Voltage (CC+CV) and Constant Power + Constant Voltage (CV)
|
|
PROTECTION
|
Over Power (OP), Over Current (OC), Over Voltage (OV), Over Temperature (OT)
|
DYNAMIC OPERATION
|
|
T high & T low
|
0.050-9.999 / 99.99 / 999.9 / 9999ms (20 kHz)
|
|
Slew Rate
|
0.02A-1.25A/μs
|
0.2A-12.5A/μs
|
0.024A-1.5A/μs
|
0.24A-15A/μs
|
0.028A-1.75A/μs
|
0.28A-17.5A/μs
|
0.032A-2A/μs
|
0.32A-20A/μs
|
|
METERING
|
|
Voltage Range
|
0 – 100 V
|
100 – 1000 V
|
0 – 100 V
|
100 – 1000 V
|
0 – 100 V
|
100 – 1000 V
|
0 – 100 V
|
100 – 1000 V
|
|
Current Range
|
0 – 25 A
|
25 – 250 A
|
0 – 30 A
|
30 – 300 A
|
0 – 35 A
|
35 – 350 A
|
0 – 40 A
|
40 – 400 A
|
|
Power Range
|
0 – 2500 W
|
0 – 25000 W
|
0 – 3000 W
|
0 – 30000 W
|
0 – 3500 W
|
0 – 35000 W
|
0 – 4000 W
|
0 – 40000 W
|
|
SHORT CIRCUIT CURRENT
|
250 A
|
300 A
|
350 A
|
400 A
|
|
AC INPUT & PHYSICAL SPECIFICATIONS
|
|
AC Input/Cooling
|
115/230 Vac ±10%, 50/60Hz / Variable Speed Fan Cooled
|
|
Dimensions (HxWxD)
|
1048 x 647 x 766 mm
41.3″ x 25.5″ x 30.2″
|
1201 x 647 x 766 mm
47.3″ x 25.5″ x 30.2″
|
1360 x 647 x 766 mm
53.6″ x 25.5″ x 30.2″
|
1513 x 647 x 766 mm
59.6″ x 25.5″ x 30.2″
|
|
Weight (Net)
|
280kg / 617.3 lbs
|
340kg / 749.6 lbs
|
390kg / 859.8 lbs
|
430kg / 948.0 lbs
|
Mainframes
|
Mainframe
|
44M01
|
44M02
|
44M04
|
|
No. of Slots
|
1
|
2
|
4
|
|
Supports
|
41L0630, 41L0660, 41L2512, 41:5012, 41L0616
42L0860, 42L0824, 42L0803
41D3024, 41D5012, 41D5024, 42D5006
|
|
Max Power
|
300W
|
600W
|
1200W
|
|
AC Input
|
100-115Vac ±10% or 200-230Vac ±10%
|
|
Frequency
|
50 / 60 Hz ±3Hz
|
|
Power (max.)
|
40W
|
60W
|
150W
|
|
Dimensions (HxWxD)
|
177x160x452mm
7.0×6.3×17.8″
|
177x269x452mm
7.0×10.6×17.8″
|
177x440x445mm
7.0×17.3×17.5″
|
|
Weight
|
5.5 kg / 12.2 lbs
|
7.5 kg / 16.5 lbs
|
9.3 kg / 20.5 lbs
|
每個機櫃 60kW 到
低電壓範圍，0 — — 6 伏
電壓 1000Vdc
1000 Adc 電流範圍
高速 5 位數精密計量能力
對於高功率應用程式的平行作業
緊湊的設計
可鎖腳輪移動櫃
操作模式︰ CC、 CP、 CR、 CV，CC + CV、 CP + 簡歷
太陽能電池板的開發和測試的最大功率點跟蹤模式
內置短路試驗
在當前的保護測試模式
在電源保護測試模式
靜態和動態的抄送模式
可用的介面選項包括 USB、 RS232、 gpib 介面和局域網
CE 標誌
載入的多功能性
所有 AP 5VP 系列荷載均都配備功能強大的微控制器和友好的使用者控制項，提供範圍廣泛的負載的應用程式的功能。精密計量，電流，功率和電阻是電壓的標準。
電源電源測試
詳細測試的線性和高速度開關模式交流/直流電源由可能靈活測距和寬 V-我工作曲線發現所有 5VP 系列 AP 中載入。
這支援高輸送量生產測試和燒傷中的小型和大型的 ac/DC 電源供應器。
電源的設計
新的電力供應設計與內置功能，如過電流保護 (OPC) 試驗和功率保護 (OPP) 試驗和動態恒定電流波形測試，
可根據設計規格可徹底的評估。類比輸入的模式允許任意的電流波形，要應用於一個單元測試以及下。
電池充電/放電測試
時間序列分析具體的放電電流水準作為電池電壓的函數允許的表徵與效能測試不同的電池化學配方。
高當前的解析度和準確性 5VP 系列負載支援小型和大型電池的測試。
太陽能電池板載入
最大功率點跟蹤功能的 5VP 直流負載模擬允許測試在各種條件下的太陽能電池板太陽能逆變器的行為。
